Project. |
Unit |

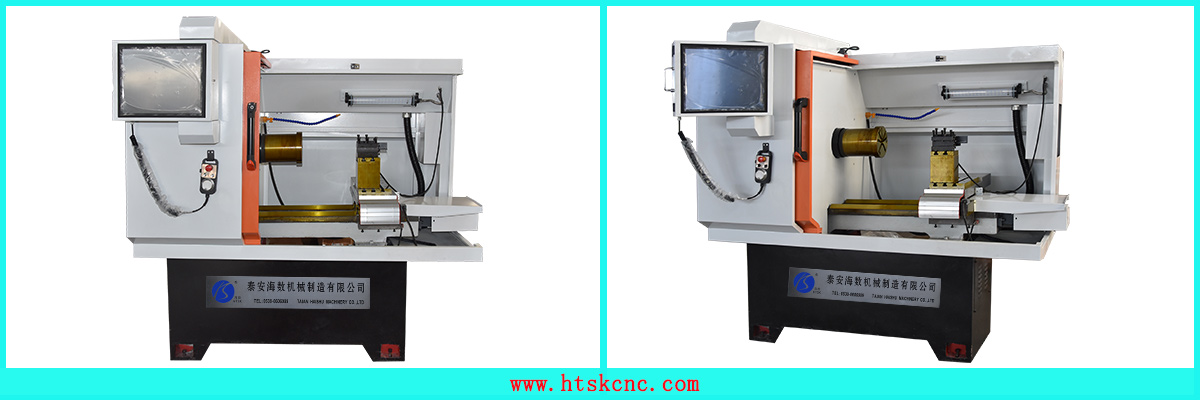

CK6160Q |
|
Maximum machining hub diameter |
Inch |
24" |
|
X-axis maximum travel |
Mm. |
320 |
|
Main motor power |
kw |
4 |
|
Rail width |
Mm. |
260 |
|
Maximum machining work part length |
Mm. |
500 |
|
The hub measures the direction |
X,、Z | |
|
Measurement tool |
Mm. |
Lasers or probes (two options one) |
|
Measurement method |
Laser scanning or probe point testing | |
|
Program optimization |
Fully automatic and manual | |
|
The amount stored in the hub machining program |
100000 | |
|
CNC system |
Independent research and development | |
|
Hub processing |
Surface. | |
|
Machine tool machining accuracy |
IT6 to IT7 | |
|
Finish. |
Um. |
Ra0.8 to 1.6 |
|
The main transmission form |
No extreme speed control | |
|
Spindle speed range |
Rpm. |
Plant set 50-1000 |
|
Fast moving speed |
mm/min |
X:5000 Z:8000 |
|
Repeat accuracy |
Mm. |
X:0.01 Z:0.015 |
|
Knife holder form |
Row knife, manual knife holder, electric knife holder | |
|
Knife handle size |
Mm. |
25×25 |
|
Machine form factor (L××W×H). |
Mm. |
1900×1400× 1750 |
|
The net weight of the machine |
kg |
1100 |

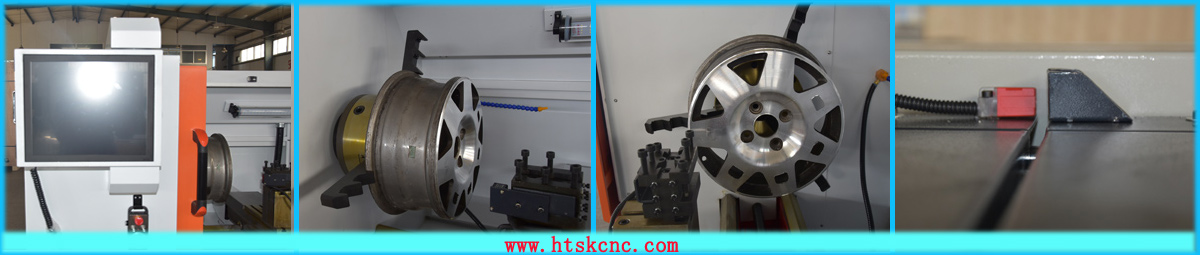

◆The large diameter of the wheel hub is 24" with wire drawing;
◆Realize wheel surface curve detection and data collection;
◆Automatically perform surface drawing and finishing according to the actual curve of the hub surface;
◆The curve optimization software independently developed by the company meets multiple languages and makes installation and operation easier;
Tai'an Haishu Machinery Co., Ltd. is a manufacturer specializing in the design, production, manufacturing and sales of wheel Repair lathe Home. At present, there are sales outlets all over the country, with reliable quality, solid craftsmanship, and perfect service to win customers
Trust of users. At present, the company also has CNC lathes, Mini CNC Lathe, Machining Centers, CNC Milling Machines, Slant bed CNC lathe and other CNC machine tools. Hope that customers can visit the company, we will serve you with the fullest enthusiasm.
