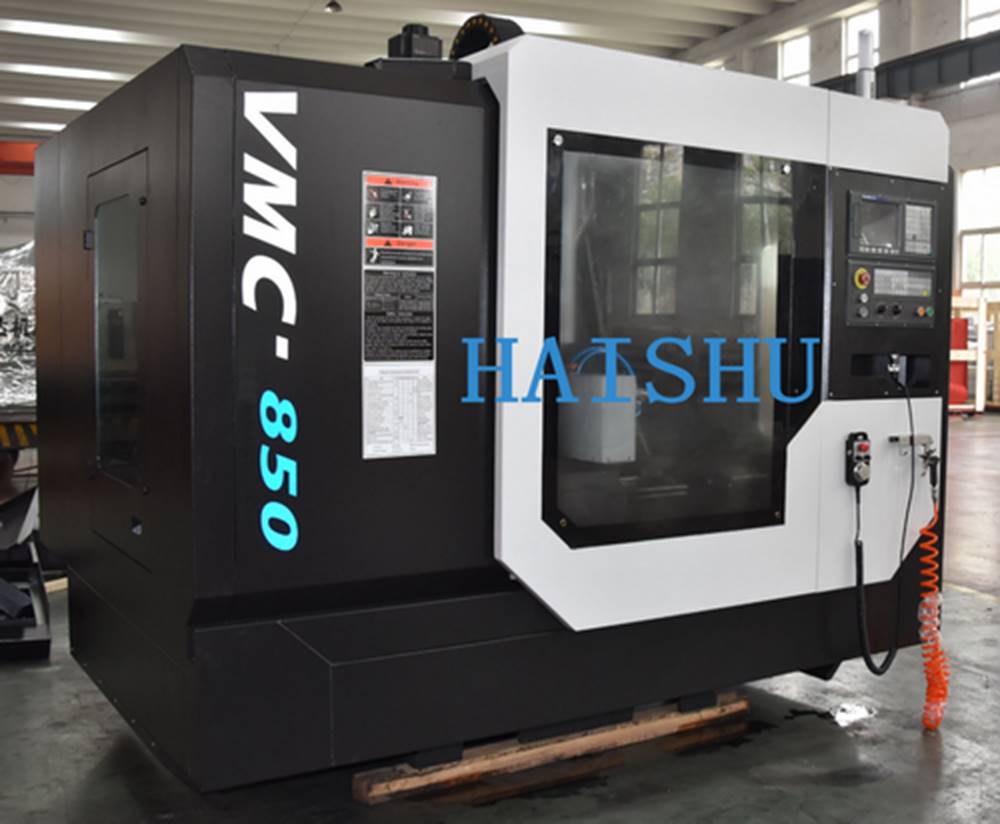

VMC850 4-axis machining center
|
Item |
Detail |
Unit |
parameter | |
|
Table |
Table size |
mm |
1000×500 | |
|
Number/Width/Distance of T-slot |
mm |
| ||
|
Max. load of table |
kg |
500 | ||
|
Stroke |
Moving range X、Y、Z |
mm |
850×500×500 | |
|
Nose to a rotary table (horizontal) distance |
mm |
150-650 | ||
|
Spindle center to column guideway surface distance |
mm |
560 | ||
|
Feed |
Fast moving speed X、Y、Z |
m/min |
30/30/24/min | |
|
Cutting feed rate X、Y、Z |
mm/min |
10~15000mm/min | ||
|
Spindle |
Spindle taper |
BT40 | ||
|
Spindle speed |
r/min |
40~6000rpm | ||
|
Main motor power |
kw |
AC servo 7.5 | ||
|
Maximum torque |
nm |
70 | ||
|
Magazine |
Tool storage capacity |
把 |
16 | |
|
Maximum tool weight |
kg |
8kg | ||
|
Maximum tool dimensions |
mm |
φ130×300 | ||
|

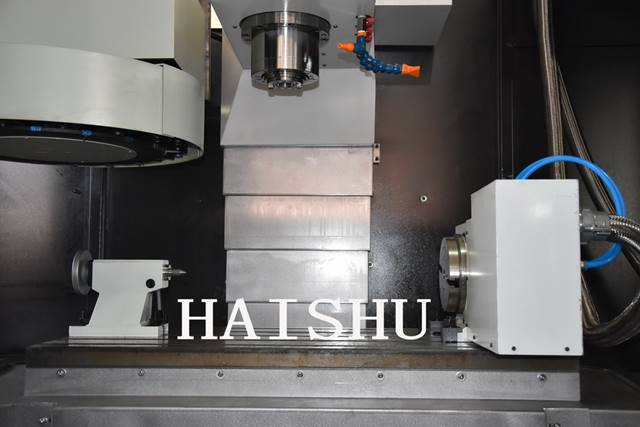

Fourth shaft |
CNC rotary table diameter |
mm |
φ200（250 Optional） | |
|
Center hole diameter |
mm |
φ35H7 | ||
|
Table height (horizontal position) |
mm |
165 | ||
|
Center height (vertical position) |
mm |
160 | ||
|
T-slot |
mm |
12H7 | ||
|
Indexing accuracy |
25＂ | |||
|
Repeatability accuracy |
Unidirectional 4＂，Two-way 8＂ | |||
|
Accuracy |
positioning accuracy |
mm |
X/Y/Z |
±0.005/300 |
|
A |
50 ″ | |||
|
C |
20″ | |||
|
Repeatability positioning accuracy X/Y/Z/A/C |
mm |
X/Y/Z |
±0.003 | |
|
A |
8″ | |||
|
C |
4″ | |||
|
Shape size |
L×W×H |
mm |
2500×2300×2300 | |
|
Net weight |
kg |
4800 | ||
|
Gross weight |
kg |
4900 | ||
