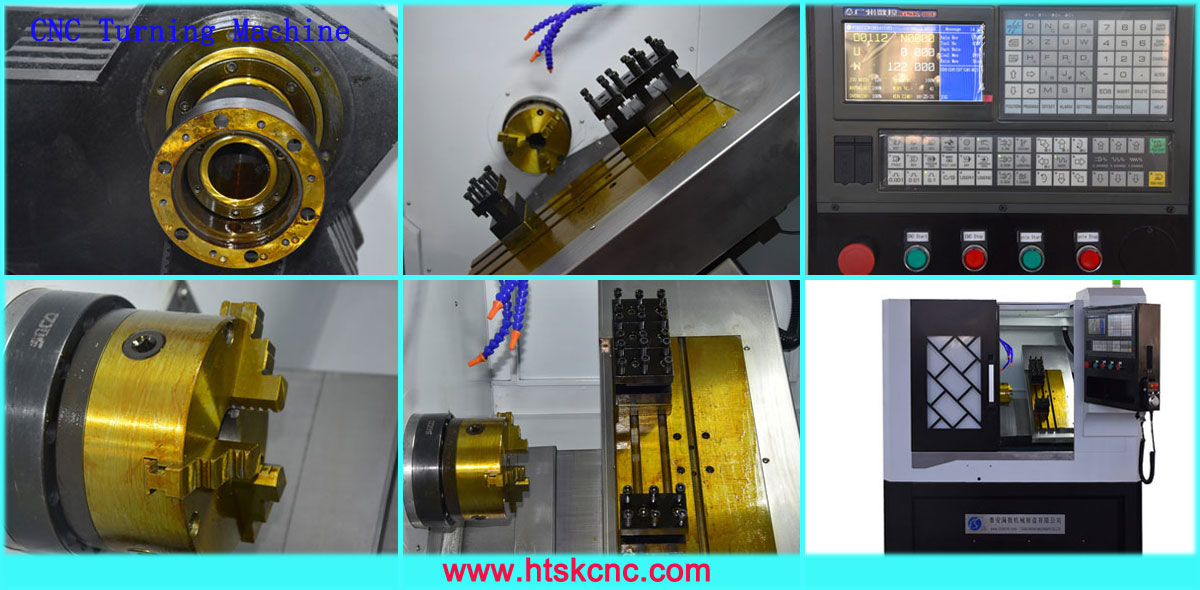

1. CNC lathe spindle unit, speed can reach 4500 rpm
2. CNC lathe machine Taiwan guide rail, fast moving speed, high precision
3. Sales of CNC lathe servo main motor, large torque, fast speed up

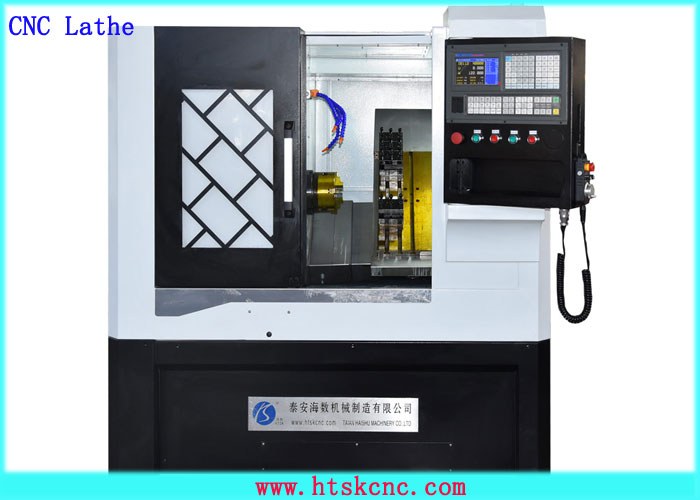

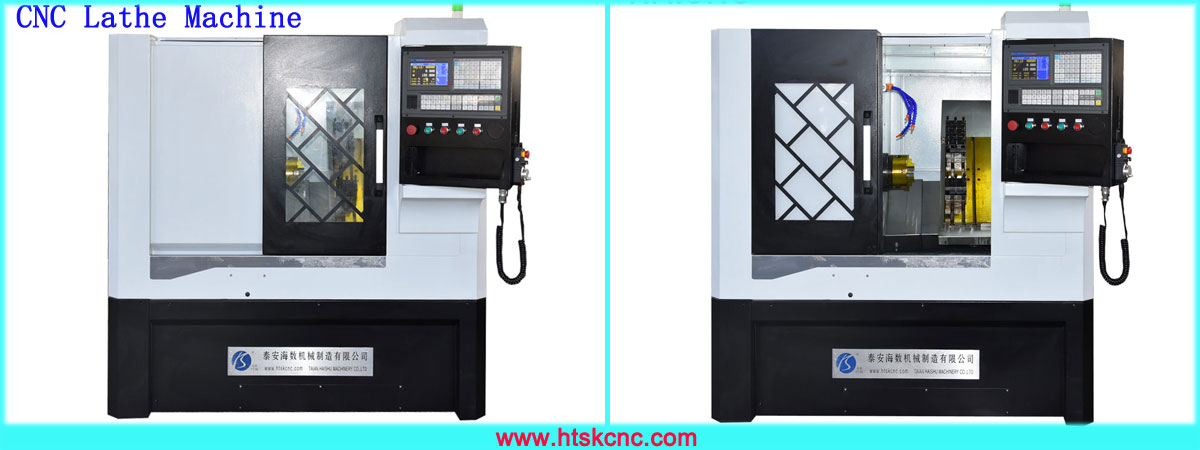

4. CNC lathe with inclined bed can be arranged or turret to meet different processing requirements
5. Power turret CNC lathe can be equipped with hydraulic collet or hydraulic chuck, or pneumatic device according to customers
6. The integral bed foot of inclined lathe has strong rigidity and low requirement for ground flatness.
7. Small CNC lathe can be installed with domestic or imported control system to meet the processing requirements of different customers. You can also label customers.
|
The Scope Of Work. | ||
|
The Maximum Swing Diameter On The Bed Body. |
mm |
400 |
|
The Skateboard Has A Maximum Pass Diameter. |
mm |
150 |
|
X-Axis Maximum Travel. |
mm |
600(Two-Way). |
|
Z-Axis Maximum Travel. |
mm |
300 |
|
Bed Body. | ||
|
Bed Body. |
Taiwan's Upper Silver Line Rail. | |
|
Rail Model. |
Hcw30cc2r600zahii | |
|
Spindle. | ||
|
Spindle Head Model. |
A2-5(Spindle Unit). | |
|
Spindle Aperture. |
mm |
Φ49 |
|
Spindle Speed. |
rpm |
4500 |
|
Main Motor Power. |
Kw |
4/5.5/7.5 |
|
The Size Of The Cassette. |
Barrel Clip Or 6-Inch Hydraulic Chuck. | |
|
Servo Axis. | ||
|
X/Z絲杠 |
3210/2110 | |
|
X/Z Motor Torque. |
6/7.5 | |
|
Working Accuracy. | ||
|
X/Z Fast-Forward Speed . |
M/min |
10/12 |
|
Positioning Accuracy. |
mm |
≤0.012 |
|
Repeat Positioning Accuracy. |
mm |
≤0.005 |
|
General Specifications. | ||
|
Power Specifications. |
380v50hz | |
|
Form Factor. |
mm |
1700×1200×1600 |
|
Net. |
Kg |
1600 |
Taian Haishu Machinery Co., Ltd. is a professional design, production, manufacturing, sales hub drawing machine manufacturers. At present, there are sales outlets all over the country, with reliable quality, solid technology, excellent service to win the trust of customers. At present, the company also has CNC lathes, CNC instrument lathes, machining centers, CNC milling machines, CNC lathes and other CNC lathe production. Hope that customers can visit the company, we will be the most enthusiastic to serve you.
