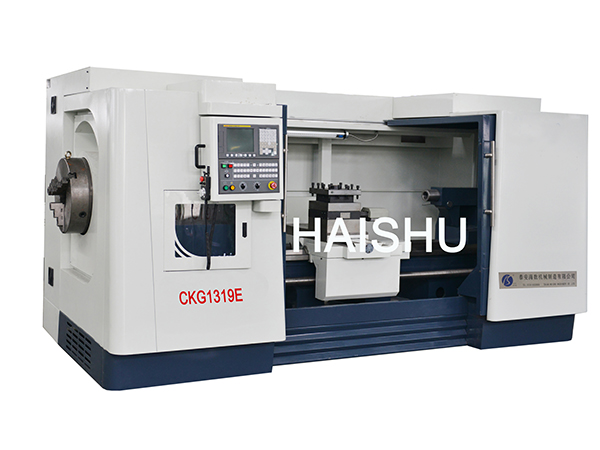

CKG1319E CNC pipe thread lathe
Main Specification
|
No. |
Item |
Unit |
Specification |
|
CKG1319E | |||
|
1 |
Max. swing over bed |
mm |
800 |
|
2 |
Max. swing over carriage |
mm |
480 |
|
3 |
Max. length of work piece |
mm |
1500 |
|
4 |
Bed guideway span |
mm |
660 |
|
5 |
Main transmission form |
Three level mechanical transmission,conversion stepless speed | |
|
6 |
Range of spindle speed |
rpm |
22~540 |
|
7 |
Spindle bore |
mm |
190 |
|
8 |
Main motor power |
KW |
15 |
|
9 |
Max. travel of turret |
mm |
X：480 Z：1520 |
|
10 |
Fast moving speed |
mm/min |
X：4000 Z：5000 |
|
11 |
Feed positioning accuracy |
mm |
0.032 |
|
12 |
Feed repetitive positioning accuracy |
mm |
0.011 |
|
13 |
Workpiece processing precision |
IT6 | |
|
14 |
Workpiece surface roughness |
Ra 1.6 | |
|
15 |
Tailstock sleeve diameter |
mm |
100 |
|
16 |
Tailstock sleeve stroke |
mm |
300 |
|
18 |
Tailstock sleeve taper |
MT6 | |
|
19 |
Turret repetitive positioning accuracy |
mm |
0.01 |
|
20 |
Cutter bar section |
mm |
40×40 |
|
21 |
Servo motor |
N.m |
X：15 Z：23 |
|
22 |
Overall dimensions(L*W*H) |
mm |
3700*1800*1760 |
|
23 |
Net weight |
Kg |
4800 |
Standard configuration:
1. CNC system: GSK980.
2. Electric turret: vertical four station electric turret.
3. Automatic lubrication system
4. Cooling system
Select configuration:
1. CNC system: KND, FANUC, SIEMENS.
2. Electric turret: horizontal 6 or 8 station electric turret.
3. Double pneumatic chuck
4. Rear bracket
