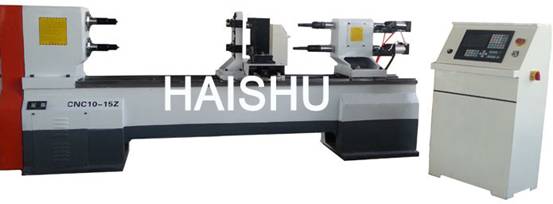

CNC-Z series woodworking CNC lathe
Main features
1. Linear guide
2. Two-spindle
3. CNC control, stepper motor drive
Main parameters
1. Two spindle center distance: 200mm,
2. Spindle diameter: Φ60 mm,
3. Spindle head: M42×2
2. When two spindle machining at the same time, maximum diameter:Φ195 mm
3. When only the above spindle machining, maximum effective diameter:Φ450 mm,
4. When only the above spindle machining, maximum theoretical axis diameter:Φ500 mm
5. Minimum setting unit: 0.01mm
6. Maximum feed speed 1000 / 6000mm / min
8, Spindle motor power 4-5.5kW (Frequency)
Main configuration
1. CNC system
2. Follow rest
3. Rotatable turret
4. Chuck
5. Follow rest set
6. Tool
7. Blow gun
8. Hex wrench
9. 36 wrench
10. Rotary thimble
11. Dimensions and max length
|
Model |
Dimensions |
Max length |
|
CNC10-10Z |
2400×1000×1300 mm |
1050mm |
|
CNC10-15Z |
2900×1000×1300 mm |
1550mm |
|
CNC10-20Z |
3400×1000×1300 mm |
2050mm |
