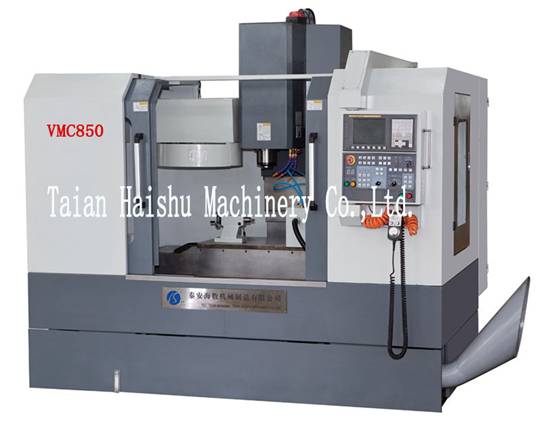

VM850 CNC milling machine
1. Specifications
|
Item |
Contents |
Units |
Specifications |
|
Table |
Table size |
mm |
1000×500 |
|
Number/Width/Distance of T-slot |
mm |
| |
|
Max. load of table |
kg |
500 | |
|
Travel |
Table travel(X、Y、Z) |
mm |
850×500×500 |
|
Distance from spindle nose to table surface |
mm |
150～650 | |
|
Distance from spindle axis to column guideway |
mm |
560 | |
|
Feed |
Rapid feed speed(X、Y、Z) |
m/min |
30/30/24 |
|
Feed speed(X、Y、Z) |
mm/min |
10～10000 | |
|
Spindle |
Taper of spindle |
BT40 | |
|
Spindle speed range |
r/min |
40～6000 | |
|
Spindle motor power |
kw |
(Ac servo)7.5 | |
|
Accuracy |
Positioning accuracy |
mm |
±0.02 |
|
Repeat positioning accuracy |
mm |
±0.01 | |
|
Overrall |
L×W×H |
mm |
2500×2600×2300 |
|
Weight |
Net weight |
kg |
4600 |
2. Main configuration
Standard:
◆ CNC system: GSK980M servo system.
◆ Spindle: Taiwan's high speed,precision spindle unit.
◆ Ball screw: Taiwan's precision ball screw.
◆ protection: full outer stainless steel inner defense and protection.
Optional: FANUC 0i mateMD or Siemens 828D.
