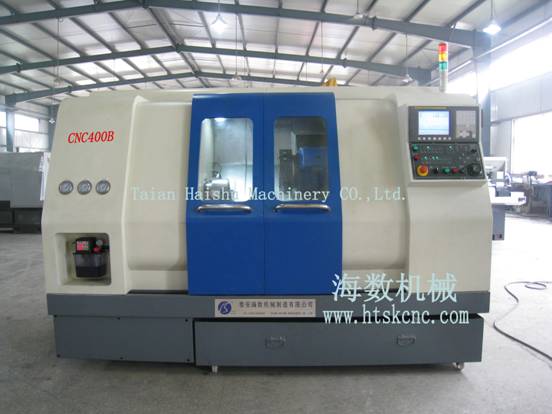

CNC (B) Series CNC turning center
CNC（B）series CNC turning center is a professional processing: Bearing; motor cover; gear economical, practical machine tools, mature product structure, stable and reliable performance and quality,cnc system using taiwan SYNTEC; overall tilt bed, 12-bit servo power turret, it is the largest amount of domestic use, the most extensive coverage of a CNC machine tools, machining widely used in the automobile, petroleum, military and other industries. machine complete varieties and specifications in the series, you can achieve internal and external surface of the disk type and short shaft type parts, conical, arc, thread, boring, reaming, can also be achieved non-circular curve processing. According to the needs of users, optional CNC systems and accessories. Main technical parameters: No. Item Unit Technical parameters CNC100B CNC200B CNC350B CNC450B CNC550B 1 Maximum turning diameter on lathe’ body mm 160 200 350 450 550 2 Maximum workpiece length mm 350/450/550 650/750/1000 3 Maximum turning diameter mm 100 160 300 400 500 4 Spindle nose type and code mm A6 A6 A8 A8 A12 5 Hydraulic chuck mm φ100 (4＂) φ160 (6＂) φ200 (8＂) φ250 (10＂) φ300 (12＂) 6 Front spindle bore taper 1:20 7 Spindle bore mm 38 40 60 60 70 8 Maximum load-bearing chucked components kg 50 100 500 500 800 9 servo spindle motor speed mm/min 0-8000 10 Rapid traverse X / Z mm/min 40000 11 main servo motor power kW 3.7 5.5 7.5 7.5 11 12 C-axis(turret power axis)motor power kW 2.2 3.7 3.7 5.5 5.5 13 X/Z servo motor maximum torque N.m 6 10 10 10 15 14 Power Specifications v 380±10%. 50Hz±1Hz 15 Carrier transfer time (one station) s 1.6(Horizontal 12) 16 Carrier transfer repeat positioning accuracy 0.005" 17 X-axis travel mm 100 150 200 300 300 18 Z-axis travel mm 350/450/550 650/750/1000 19 C-axis (turret power axis) maximum speed rpm 4000 20 Hydraulic servo turret form Horizontal 12-station power turret 21 Knife handle size mm □20×20 □25×25 □25×25 □32×32 □32×32 22 Net weight kg 2800/3200/3600 5000/6000/8000 23 Size（L×W×H） mm 2000/2100/2200×1350×1750 2600/2700/3000×1600×1950 Standard configuration: ◆Hydraulic solid chuck; ◆Spindle unit, servo drives; ◆X/Z/B axis heavy line rail; ◆Horizontal 12-position power turret; ◆Line rail electric tailstock, hydraulic sleeve; ◆Automatic lubrication system; ◆Coolant System; ◆Fully enclosed protective system. Select configuration: ◆Control system: GSK, KND, Siemens, Fanuc; ◆Hydraulic hollow chuck; ◆Automatic chip conveyor; ◆Increase the Y-axis.
◆Taiwan SYNTEC control systems;
