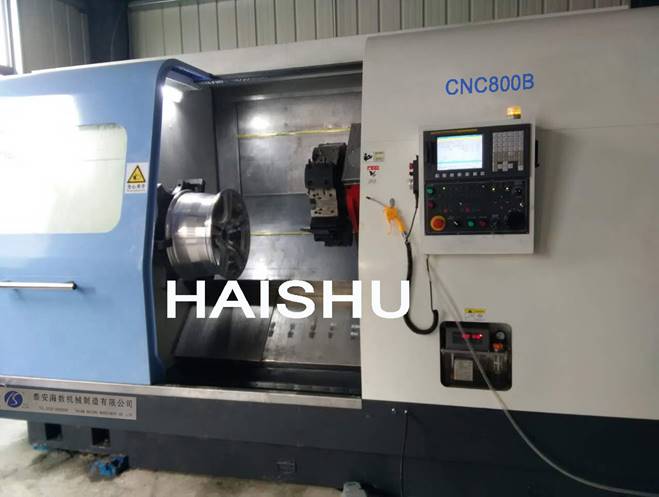

CNC800B Wheel CNC Lathe
specifications
|
No. |
Item |
Unit |
specifications |
|
1 |
Max.rotation diameter on lathe’ body |
mm |
800（31＂） |
|
2 |
Max.turning diameter |
mm |
650（25＂） |
|
3 |
Max.workpiece lengt |
mm |
700（27＂） |
|
4 |
Spindle nose type and code |
mm |
A11 |
|
5 |
Chuck form |
mm |
Wheel Hydraulic chuck |
|
6 |
Front spindle bore taper |
1:20 | |
|
7 |
Spindle bore |
mm |
70 |
|
8 |
Maximum load |
kg |
350 |
|
9 |
spindle speed |
rpm |
20-3000 |
|
10 |
X/Z Rapid traverse |
mm/min |
25000 |
|
11 |
Main servo motor power |
kW |
18.5 |
|
12 |
Power specifications |
v |
380±10%. 50Hz±1Hz |
|
13 |
Turret transfer time (one station) |
s |
0.3(臥12) |
|
14 |
Turret transfer repeat positioning accuracy |
0.008" | |
|
15 |
X-axis travel |
mm |
400 |
|
16 |
Z-axis travel |
mm |
1100 |
|
17 |
Workpiece accuracy |
mm |
IT5-IT6 |
|
18 |
Workpiece surface roughness |
μm |
|
|
19 |
Turret form |
Horizontal hydraulic 12-station power turret | |
|
20 |
Tool handle size |
mm |
□32×32 |
|
21 |
Net weight |
kg |
6500 |
|
22 |
Size（L×W×H） |
mm |
2700×1700×2100 |
Standard configuration:
1. CNC system: Fanuc 0i-TD；
2. Spindle motor（Fanuc）
3. X/Z motor（Fanuc）
4. Wheel hydraulic chuck (Taiwan)
5. Horizontal hydraulic 12-station power turret (Taiwan)
6. Ball screw（Japan THK）
7. heavy line rail(Taiwan)
8. Hydraulic Station(Taiwan)
9. Automatic lubrication system (Taiwan)
10. Coolant System
11. Fully enclosed protection system
