No.

Item

Unit

specifications

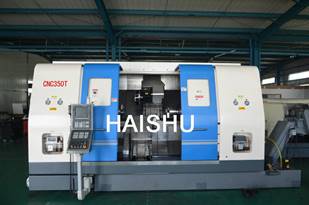

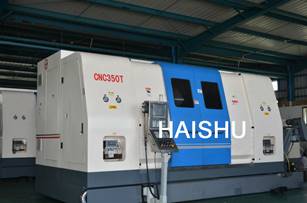

CNC350T

1

Max.rotation diameter on lathe’ body

mm

350

2

Max.workpiece lengt

mm

750/1000/1500

3

Max.turning diameter

mm

300

4

Spindle nose type and code

mm

A8

5

2-Hydraulic chuck

mm

2-φ200

(8＂)

6

Front spindle bore taper

1:20

7

Spindle bore

mm

50

8

2- Servo spindle speed range

mm/min

0-4000

9

X/Z/B Rapid traverse

mm/min

40000

10

Cs1，Cs2 main servo motor power

kW

7.5

11

C-axis(Turret power axis) motor power

kw

3.7

12

X/Z-axis motor max.torque

N.m

10

13

Y-axis travel(optional)

mm

+35/-35

14

B-axis(sub-spindle) motor max.torque

N.m

15

15

Power specifications

v

380±10%. 50Hz±1Hz

16

Turret transfer time (one station)

s

 1.6(Horizontal12)

17

Turret transfer repeat positioning accuracy

mm

0.005"

18

X1/X2-axis travel

mm

200

19

Z1/Z2-axis travel

mm

1100/1350/1850

20

B-axis (sub-spindle) travel

mm

1400/1650/2150

21

2-C axis(Turret power axis) max.speed

rpm

       4000

22

Biaxial dynamic docking concentricity

mm

0.005

23

Ydraulic servo turret form

2-Horizontal 12-station power turret

24

Turret cylinder clamping force

kg

4240

25

Turret hydraulic power source

kg/cm²

40

26

Power tool holder specification

VDI40 DIN5480

27

Knife handle size

mm

□20×20

28

Net weight

kg

5500

29

Size（L×W×H）

mm

2700/3000/3500×1650×1900
