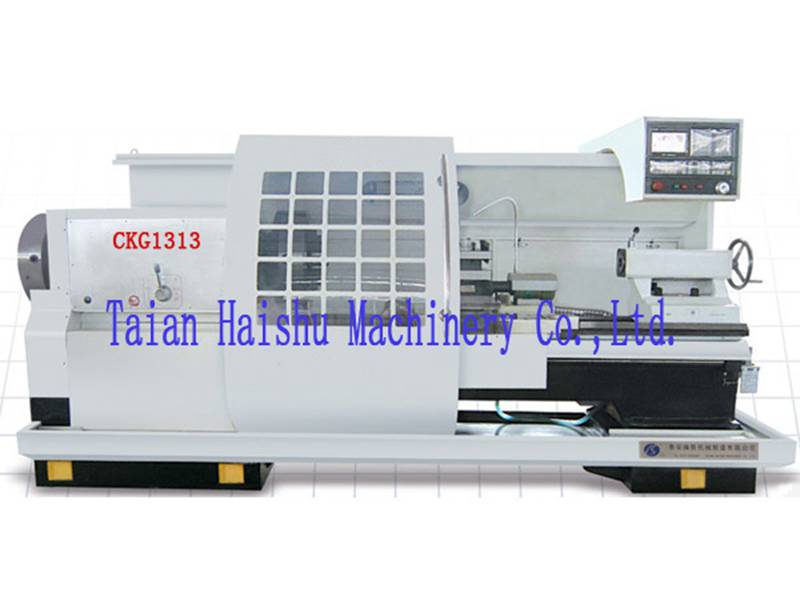

CKG(B) Series CNC pipe thread lathe
Main features:
◆Bed rail width, heavy weight, good rigidity and stability;
◆Two gears mechanical transmission, frequency stepless speed regulation.
Standard configuration
◆CNC system ：GSK980 ,
◆The spindle two gears frequency conversion speed,
◆Front and rear three-jaw electric chuck,
◆Vertical four-position electric turret,
◆With tailstock,
◆Automatic lubrication system,
◆Turning cooling system.
Select Configure
◆CNC system ：KND, Siemens, Fanuc,
◆Manual chuck, pneumatic chuck, hydraulic chuck,
◆Horizontal six-position electric turret,
◆The rear bracket, center bracket ,follow tool bracket.
|
Item |
Unit |
Specification | ||
|
CKG1313B |
CKG1319B |
CKG1322B | ||
|
Maximum workpiece swing diameter over bed |
mm |
630 |
630 |
670 |
|
Maximum workpiece swing diameter skateboard |
mm |
350 |
350 |
390 |
|
Maximum distance between centers |
mm |
1000、1500、2000 | ||
|
X-axis maximum stroke |
mm |
300 | ||
|
Maximum distance across the dual chuck |
mm |
1450 |
1550 |
1550 |
|
Spindle bore diameter |
mm |
135 |
200 |
225 |
|
Spindle speed mode |
Spindle 2-gears frequency speed | |||
|
Spindle speed range |
r/min |
40-800 |
25-500 |
25-500 |
|
Bed rail width |
mm |
550 |
550 |
550 |
|
Main motor power |
kw |
11 | ||
|
X/Z axis servo motor torque |
Nm |
10/15 | ||
|
Tailstock quill diameter |
mm |
φ100 | ||
|
Tailstock sleeve maximum stroke |
mm |
250 | ||
|
Tailstock sleeve taper |
MT5 | |||
|
X/Z axis rapid traverse rate |
m/min |
4/6 | ||
|
X/Z axis repeat positioning accuracy |
mm |
0.012/0.016 | ||
|
Dimensions (L × W × H) |
mm |
3600×1650×1810 |
3600×1650×1810 |
3750×1650×1810 |
|
Net weight |
kg |
4200 |
4500 |
4800 |
