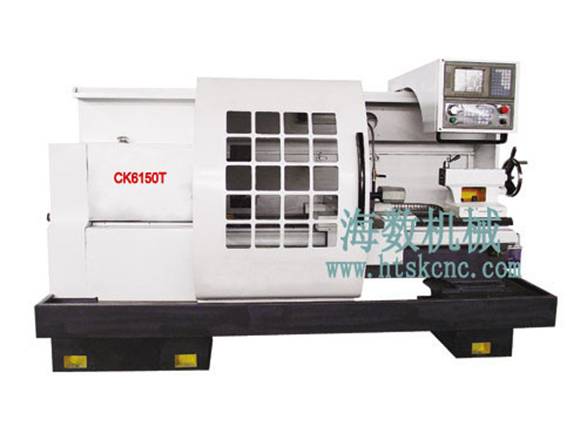

CK6150T/CK6160T Large hole CNC lathe
The main technical parameters and configuration
|
Item |
Technical parameters | |
|
CK6150T |
CK6160T | |
|
Maximum workpiece swing diameter over bed |
500mm |
600mm |
|
Spindle center to bed rail distance |
250mm |
300mm |
|
Maximum workpiece swing diameter over skateboard |
270mm |
370mm |
|
Maximum distance between centers |
1000mm、1500mm、2000mm | |
|
Turret cross travel (X-axis) |
290mm | |
|
Spindle bore maximum diameter |
140mm |
200mm |
|
Spindle speed mode |
Frequency conversion stepless | |
|
Spindle speed range |
70-800r/min |
70-700r/min |
|
Bed rail width |
400mm | |
|
Diameter of tailstock quill |
75mm | |
|
Maximum stroke of tailstock sleeve |
150mm | |
|
Taper of tailstock sleeve |
M5 | |
|
Automatic lubrication interval time |
12min/次 | |
|
Rapid traverse rate |
X：4m/min Z：6m/min | |
|
X / Z axis repeatability positioning accuracy |
0.012/0.016mm | |
|
Main motor |
5.5KW |
7.5KW |
|
Cooling pump power |
95W | |
|
Large hole jaw chuck |
Φ380 |
Φ500 |
Standard configuration: 1. Host variable speed; 2. Manually chuck; 3. Four-station electric turret; 4. Servo feed drive system; 5. Automatic lubrication system; 6. Cooling system; 7. Manual tailstock; 8. Electrical control system; 9. CNC system (GSK980); 10. Closed guard.
Optional configuration: 1. Six-station electric knife; 2. CNC (Fanuc, Siemens, KND,etc.); 3. Can be configured behind chuck.
