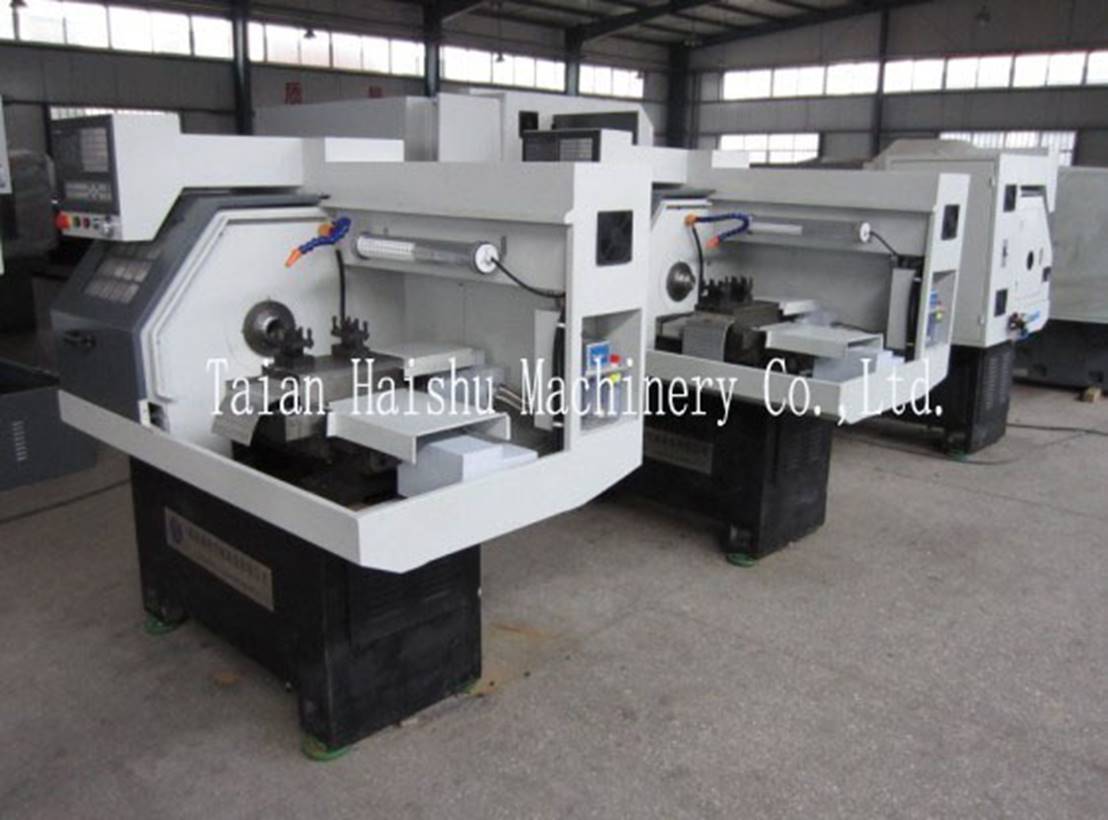

CK06100A/CK06110A
CNC LATHE
1. Specifications
|
Items |
Specifications | ||
|
CK06100A |
CK06110A | ||
|
Max.swing over bed |
mm |
Φ300 | |
|
Max.swing over carriage |
mm |
Φ150 | |
|
Max. length of work piece |
mm |
450 | |
|
Spindle head form |
A2-5 | ||
|
Spindle bore |
mm |
Φ110 |
Φ120 |
|
Trombone bore |
mm |
Φ100 |
Φ110 |
|
Guide rail width |
mm |
300 |
300 |
|
Guide rail length |
mm |
900 |
900 |
|
X / Z axis repeat positioning accuracy |
mm |
0.012/0.013 | |
|
X-axis max motion traveling schedule |
mm |
400 | |
|
Z- axis max motion traveling schedule |
mm |
450 | |
|
X-axis fast moving speed |
m/min |
5 | |
|
Z- axis fast moving speed |
m/min |
8 | |
|
Range of spindle speed |
r/min |
150-1600 |
150-1600 |
|
Turret form |
Row knives or electric tool post（optional） | ||
|
Power of the main drive motor |
KW |
4 | |
|
Overall dimensions(L×W×H) |
mm |
1750×1200×1550 | |
|
Net weight |
Kg |
1450 |
1500 |
2. Characteristics
2.1 The base of the machine tool, lathe bed guide rail structure reasonable wide, berth box adopts thermal type structure design, the more effectively improve the stability of the machine and the axis of stability.
2.2 Before and after the spindle bearings are used high precision ball bearing, contact with diagonal work good stability, high load bearing.
2.3 The wear-resisting cast iron casting, guide rail and the super audio quenching and fine grinding, to ensure the long-term stability of machining precision and service life.
2.4 X axis and Z axis screw all use of four point one-like for structure design, ensure guide in the work more smoothly and not by lateral force influence, in processing products when dragging plate cutting big and small dragging plate more smoothly and vibrate resistance, it is more convenient to maintain better.
2.5 Z to guide with double swallow tail the fully closed structure design, in machine tool can work better for protection of guide rail, top end before and after sit move more stable and convenient and quick.
2.6 Spindle flange connection plate adopts the international standard design, ordinary three claws chuck and hydraulic chuck installation more convenient and quick.
3. Application
The machine can be widely used for valve/plumbing/auto parts and other metal parts to the finishing. multiple products a circular/end face/hole/cutting/any cone/sphere and various metric system of automatic thread cutting.
4、Standard configuration
★system：KND
★Pneumatic chuck ★Row knives
5、Optional configuration
★system：GSK，Siemens，Fanuc
★Manual or Power tailstock ★Electric turret
CNC lathe research and development, every problem we can not be ignored!
How to make my machine have a longer service life?
How to make the equipment have higher production efficiency?
How to ensure that the machine is simple to learn?
... ...
Learn CNC lathes
From the beginning our website!
Global Service Hotline:+86-0538-8606169
