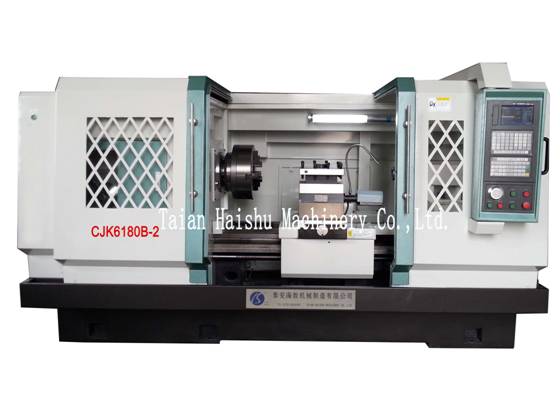

CJK6163B-2/CJK6180B-2 CNC LATHE
1.Technical parameters
|
Item |
Project name |
Technical paramaters | |
|
CJK6163B-2 |
CJK6180B-2 | ||
|
technical specifications |
Max.swiming over the bed dia. (mm) |
Φ630 |
Φ800 |
|
Max.swiming over pallet(mm) |
Φ350 |
Φ500 | |
|
Max.the workpiece length(mm) |
1000/1500/3000 | ||
|
Main transmission |
Main transmission form |
Three handle to speed ; frequency conversion stepless | |
|
Number of spindle speeds |
stepless | ||
|
Range of spindle speed(r/min) |
25~800 | ||
|
The form of the spindle head |
C11 | ||
|
Spindle taper hole |
1:20 | ||
|
Spindle bore(mm) |
Φ100 | ||
|
Main motor power(kw) |
11kw | ||
|
Feed system |
Turret maximum stroke(mm) |
X - axis: 500 Z - axis:1200,1650,3100 | |
|
Fast-moving feed(mm/min) |
X - axis:4000 Z - axis:5000 | ||
|
Repeat positioning accuracy(mm) |
X - axis:0.01 Z - axis:0.015 | ||
|
Workpiece accuracy |
IT6-IT7 | ||
|
Workpiece surface roughness |
Ra1.6 | ||
|
tailstock |
Dia. of tailstock quill(mm) |
Φ100 | |
|
Tailstock quill stroke(mm) |
250 | ||
|
Taper of tailstock quill |
MT6 | ||
|
Tool post |
Standard accessories |
4 station electric tool | |
|
Opinional accessories |
Horizontal 6 station electric turret | ||
|
Repeat positioning accuracy(mm) |
0.01 | ||
|
Section of turning tool(mm) |
30*30 | ||
|
Size and weight |
The size of the machine (length*width*height)(mm) |
3200/3700/5200*1820*1780 | |
|
Net weight of the machine(kg) |
3400、3700、5200 | ||
2,Main features
1) Horizontal flat-bed the whole casting structure
2) Spindle bore increase to 100mm
3) Feed of X Z axis are driven by ball screw with servo-motor
4) the guideway use hyperacoustic quenching.
5) Hardended and ground bed guide way coated with Turcite-B
6) high pression ball screw, High rigid precision composite bearing structure
7) ball screw and the guide surface combination use automatic lubrication system.
3. Configuration
(1)the controller system: GSK (
(2) Chuck optional: manual, pneumatic or hydraulic chuck.
(3) Tailstock optional: manual, pneumatic, hydraulic tailstock
